Theatre specifications
A 500-seat performance space for concerts, theatre, dance, film and community events. For detailed production planning, contact our team.

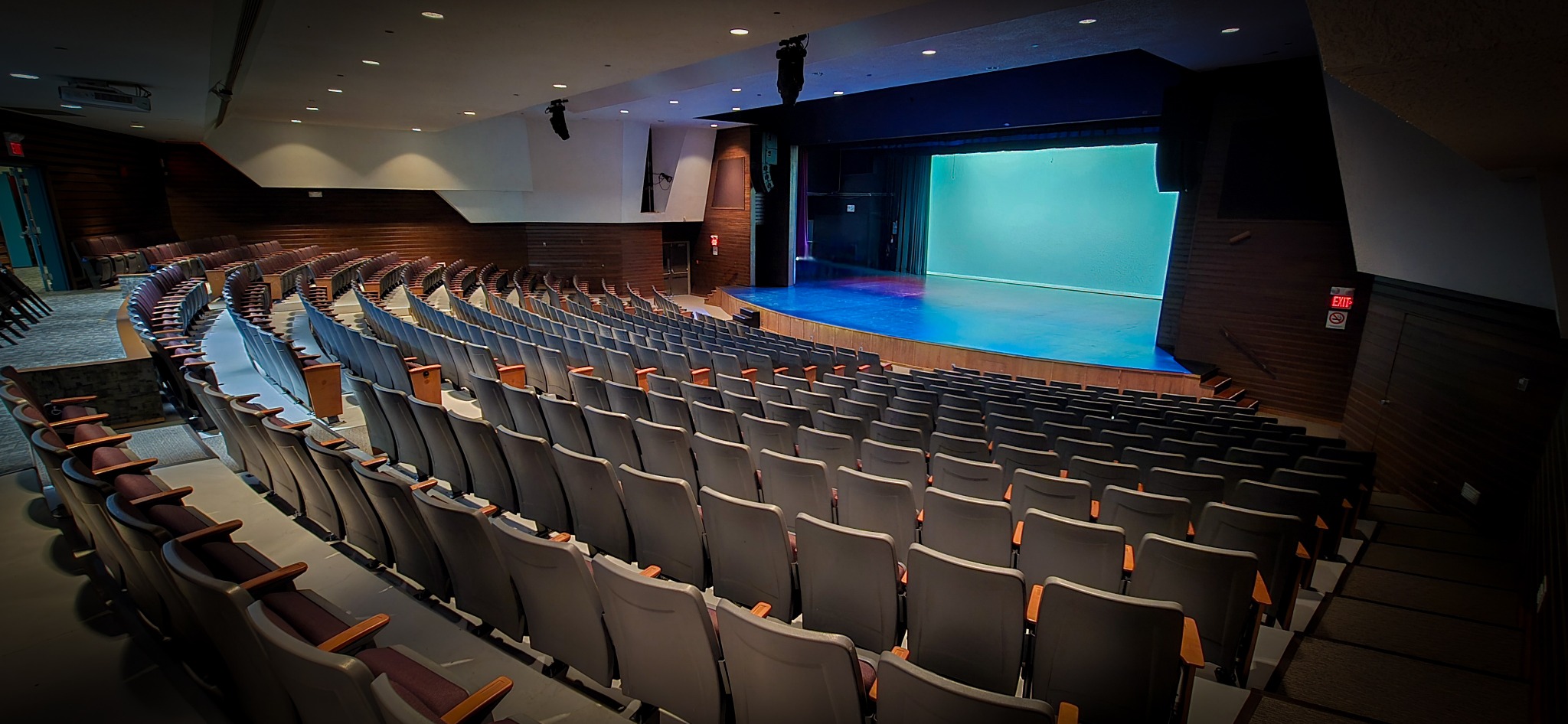

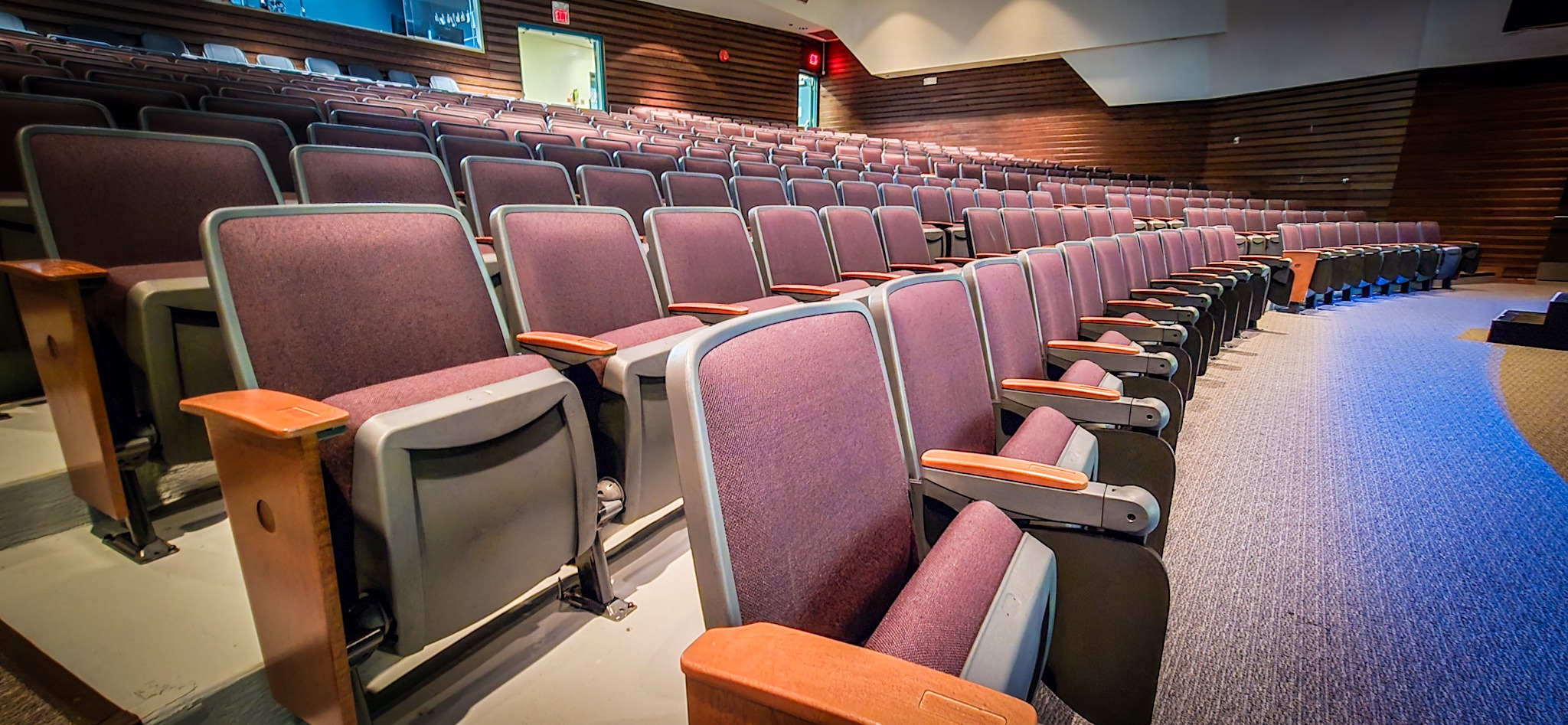

Inside the Theatre
Stage
Stage Type: Apron Stage Width: 41 ft / 12.6 m Stage Depth: 29.5 ft / 9.1 m Stage Height: 16.5 ft / 5.1 m Apron Depth: 14 ft / 4.3 m Stage to Grid: 46 ft / 14 m From back wall to mid-stage curtain: 16.7 ft / 5.1 m From front of apron to mid-stage curtain: 27.9 ft / 8.5 m Wing — Stage Left: 13 ft / 4.0 m Wing — Stage Right: 34 ft / 10.5 m Stage: Painted matte black plywood. Trap door and stage elevator not available. Fly System: Yes Sprung Floor: Yes Choral Risers: Yes Acoustic Shell: No Orchestra Pit and Seating: Not available Cyclorama: Yes Piano: Baldwin Grand; upright

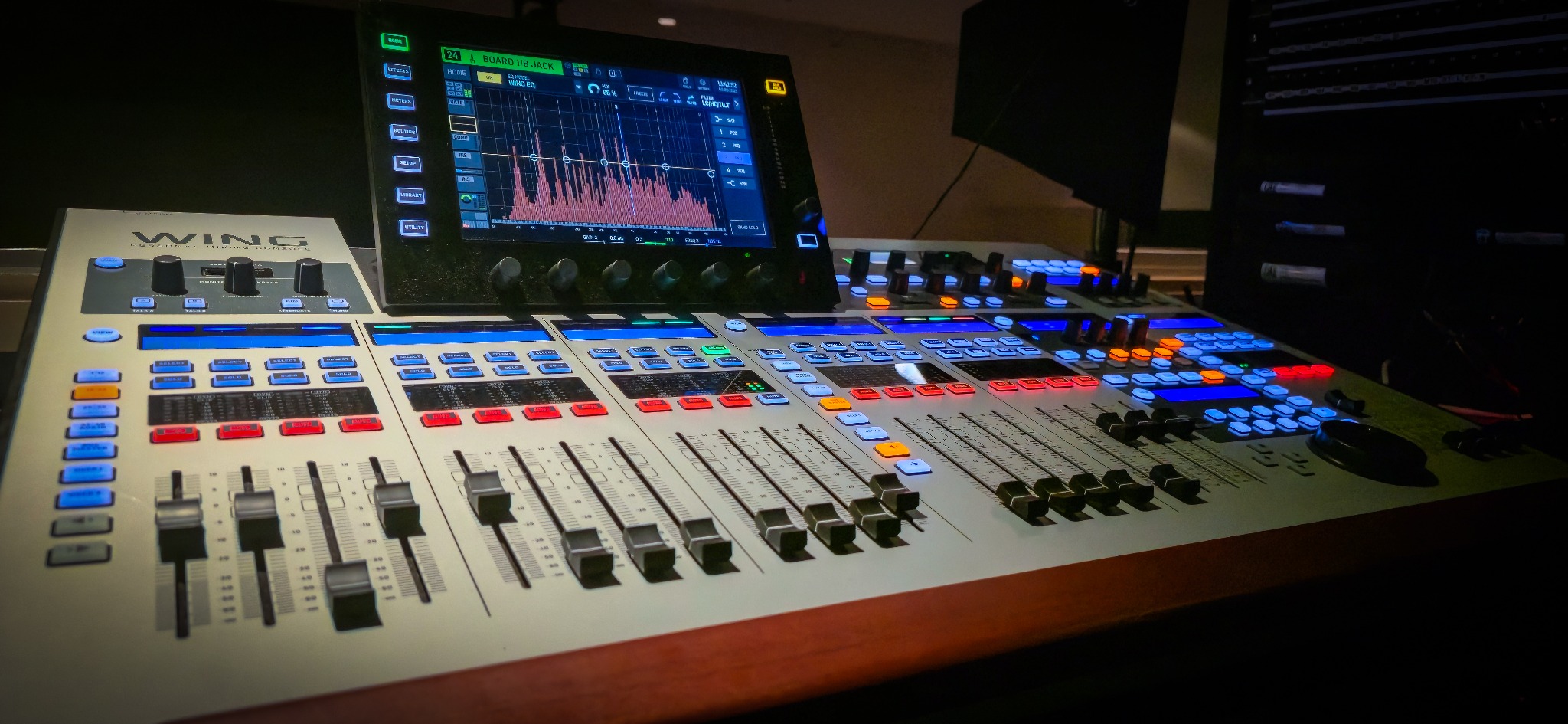

Sound
Complete sound system; control booth at rear of house Board: Behringer Wing Digital Stage Box: Behringer S32 (stage right) JBL VRX Line Array System (2) JBL SRX 15″ Powered Monitors (4) JBL SRX 12″ Powered Monitors (1) Shure PSM 400 Wireless In-Ear Monitor
Wireless
(1) Shure ULXD4Q Wireless Receiver (6) Shure ULXP4 Wireless Transmitters (5) Shure Wireless SM58 Mic Systems (2) Shure Wireless Beta58 Mic Systems (8) Shure Wireless Beltpack Mic Systems (8) Countryman H6 Headsets (1) Countryman E6 Earset (2) Countryman B3 Omnidirectional Lavaliers
Direct Boxes
(2) Radial J48 Active Direct Boxes (1) Leem FDR60 Filter DI (3) ARTccessories Zdirect Passive DIs (1) Yorkville YDI-1P Passive DI
Projector
Epson Power Lite Prp Z8350W VGA hookup on stage VGA and HDMI in booth Distance to projection screen: 58 ft; screen size 41 ft wide × 16 ft high Distance to cyc: 81 ft; screen size 41 ft 8 in wide × 16 ft high
Backstage
Loading: 10 ft 5 in wide × 8 ft high; ground-level doors to stage-right wing Parking: Overnight parking lot adjacent to backstage entrance Rehearsal Space: Yes Dressing Rooms: Yes Green Room: Yes (must be written into the contract)

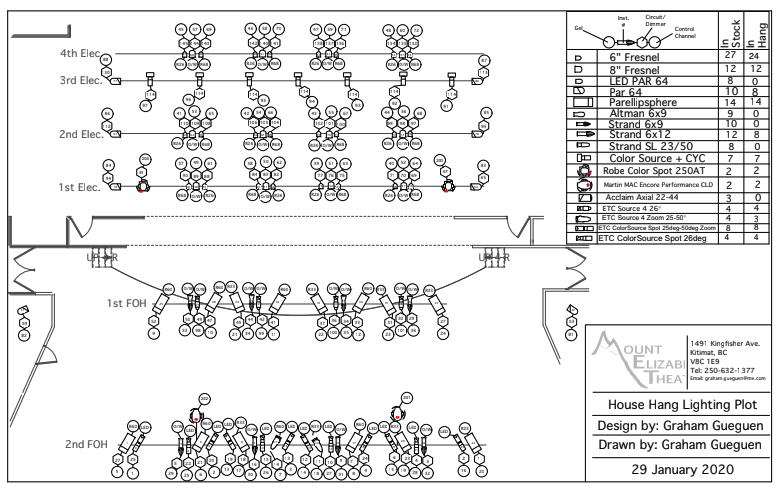

Lighting
Complete lighting system; control booth at rear of house Dimmers: 192 Strand CD80, one dimmer per channel Board: ETC Ion XE (24) ETC ColorSource Spot with 25–50° Zoom Lens (7) ETC ColorSource Spot with cyc adaptor (8) ETC ColorSource LED PARs (8) ETC Source Four 26° (12) 8″ Fresnels, 750 W (24) 6″ Fresnels, 500 W (2) Robe ColorSpot 250 (3) Mac Encore Professional CLD
Live Stream
Blackmagic live stream system
Microphones
(5) Shure SM57 Instrument Microphones (8) Shure SM58 Vocal Microphones (2) Shure SM81 Condenser Instrument Microphones (4) Shure SM86 Condenser Vocal Microphones (2) Shure SM94 Condenser Instrument Microphones (4) Shure EZO Easyflex Overhead Microphones (hung) (1) Shure Beta 52A Kick Drum Mic (3) AKG D880 Vocal Microphones (1) AKG D3800 Vocal Microphone (4) Sennheiser e604 Drum Mics

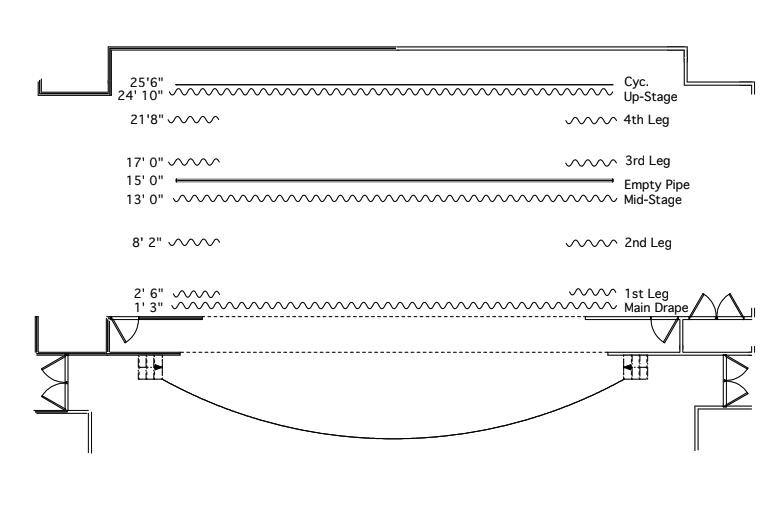

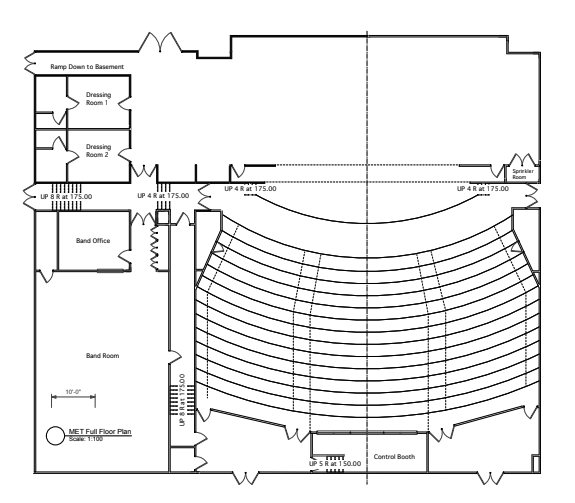

Plans & plots
